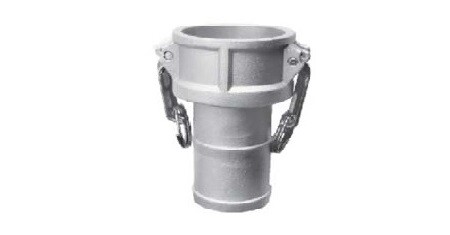

Camlock type C Aluminium

Norm 1

EN 14420-7 DIN

Norm 2

MIL A-A-59326A

General material

Aluminium

Category

Coupling with hose tail

Coupling side type

Female

Material levers

Galvanized steel

Suitable for mounting type

Hose clamp & Band-it assembly

Art. no.	IMPA code	General material	Working pressure (BAR)	Hosetail diam. (mm)	Coupler size (inch/mm)	Seal coupling side	Weight	Stock	Price per pcs	Amount
Art. no. 4620021	IMPA code 352000	General material Aluminium	Working pressure (BAR) 16	Hosetail diam. (mm) 13 mm	Coupler size (inch/mm) 1/2" (DN13)	Seal coupling side NBR	Weight 0.09 kg	Stock 381	Price per pcs £ 2.29	Amount
Art. no. 4620022	IMPA code 352001	General material Aluminium	Working pressure (BAR) 16	Hosetail diam. (mm) 19 mm	Coupler size (inch/mm) 3/4" (DN19)	Seal coupling side NBR	Weight 0.13 kg	Stock 307	Price per pcs £ 3.01	Amount
Art. no. 4620023	IMPA code 352002	General material Aluminium	Working pressure (BAR) 18	Hosetail diam. (mm) 25 mm	Coupler size (inch/mm) 1" (DN25)	Seal coupling side NBR	Weight 0.15 kg	Stock 179	Price per pcs £ 3.04	Amount
Art. no. 4620025	IMPA code 352003	General material Aluminium	Working pressure (BAR) 18	Hosetail diam. (mm) 32 mm	Coupler size (inch/mm) 11/4" (DN32)	Seal coupling side NBR	Weight 0.18 kg	Stock 301	Price per pcs £ 4.63	Amount
Art. no. 4620024	IMPA code 352004	General material Aluminium	Working pressure (BAR) 18	Hosetail diam. (mm) 38 mm	Coupler size (inch/mm) 11/2" (DN38)	Seal coupling side NBR	Weight 0.31 kg	Stock 291	Price per pcs £ 5.21	Amount
Art. no. 4620026	IMPA code 352005	General material Aluminium	Working pressure (BAR) 18	Hosetail diam. (mm) 50 mm	Coupler size (inch/mm) 2" (DN50)	Seal coupling side NBR	Weight 0.38 kg	Stock 217	Price per pcs £ 6.47	Amount
Art. no. 4620027	IMPA code 352006	General material Aluminium	Working pressure (BAR) 18	Hosetail diam. (mm) 63 mm	Coupler size (inch/mm) 21/2" (DN63)	Seal coupling side NBR	Weight 0.46 kg	Stock 153	Price per pcs £ 7.35	Amount
Art. no. 4620028	IMPA code 352007	General material Aluminium	Working pressure (BAR) 9	Hosetail diam. (mm) 75 mm	Coupler size (inch/mm) 3" (DN75)	Seal coupling side NBR	Weight 0.69 kg	Stock 100	Price per pcs £ 10.59	Amount
Art. no. 4620029	IMPA code 352008	General material Aluminium	Working pressure (BAR) 7	Hosetail diam. (mm) 100 mm	Coupler size (inch/mm) 4" (DN100)	Seal coupling side NBR	Weight 1.08 kg	Stock 146	Price per pcs £ 13.81	Amount
Art. no. 4620030	IMPA code 352009	General material Aluminium	Working pressure (BAR) 5	Hosetail diam. (mm) 125 mm	Coupler size (inch/mm) 5" (DN125)	Seal coupling side NBR	Weight 1.32 kg	Stock 41	Price per pcs £ 20.28	Amount
Art. no. 4620031	IMPA code 352010	General material Aluminium	Working pressure (BAR) 5	Hosetail diam. (mm) 150 mm	Coupler size (inch/mm) 6" (DN150)	Seal coupling side NBR	Weight 2.75 kg	Stock 22	Price per pcs £ 30.26	Amount

Inventory status

IN STOCK (delivery 1-3 workdays)

No stock (delivery time on request)

Description

Camlock Type C aluminium couplings are popular components in various sectors due to their versatility and ease of use.
These couplings, also known as cam and groove couplings, are often used for quickly and safely connecting hoses and pipes.

The aluminium construction of Camlock Type C couplings provides a lightweight and durable solution. This makes them particularly suitable for applications where weight is an important factor, such as in the water and wastewater industries.
The Type C coupling features a female camlock adapter on one side and a hose tail on the other.

A key advantage of aluminium Camlock Type C couplings is their ease of use. They can be quickly and easily connected and disconnected by moving the cam handles up or down.
This makes them ideal for situations where quick connections are required. Additionally, the aluminium material offers an excellent balance between strength and weight, contributing to ease of use.

Camlock Type C aluminium couplings are a reliable and efficient solution for connecting hoses and pipes in various industries.
Their lightweight, durability, and easy installation make them a popular choice for applications in the water and wastewater industries.
With the different available sizes, these couplings can meet diverse needs, making them a versatile option for many applications.
