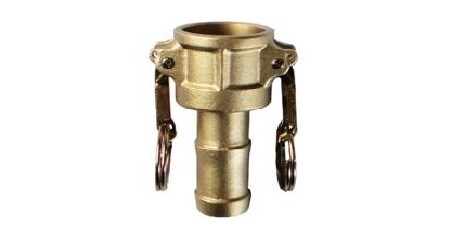

Camlock type C Brass

Norm 1

EN 14420-7 DIN

Norm 2

MIL A-A-59326A

General material

Brass

Category

Coupling with hose tail

Coupling side type

Female

Material levers

SS316

Suitable for mounting type

Hose clamp & Band-it assembly

Art. no.	IMPA code	General material	Working pressure (BAR)	Hosetail diam. (mm)	Coupler size (inch/mm)	Seal coupling side	Weight	Stock	Price per pcs	Amount
Art. no. 4620201	IMPA code 352014	General material Brass	Working pressure (BAR) 16	Hosetail diam. (mm) 13 mm	Coupler size (inch/mm) 1/2" (DN13)	Seal coupling side NBR	Weight 0.15 kg	Stock 127	Price per pcs £ 4.10	Amount
Art. no. 4620202	IMPA code 352015	General material Brass	Working pressure (BAR) 18	Hosetail diam. (mm) 19 mm	Coupler size (inch/mm) 3/4" (DN19)	Seal coupling side NBR	Weight 0.23 kg	Stock 54	Price per pcs £ 6.14	Amount
Art. no. 4620203	IMPA code 352016	General material Brass	Working pressure (BAR) 18	Hosetail diam. (mm) 25 mm	Coupler size (inch/mm) 1" (DN25)	Seal coupling side NBR	Weight 0.36 kg	Stock 165	Price per pcs £ 7.92	Amount
Art. no. 4620241	IMPA code 352017	General material Brass	Working pressure (BAR) 18	Hosetail diam. (mm) 32 mm	Coupler size (inch/mm) 11/4" (DN32)	Seal coupling side NBR	Weight 0.46 kg	Stock 84	Price per pcs £ 9.91	Amount
Art. no. 4620242	IMPA code 352018	General material Brass	Working pressure (BAR) 18	Hosetail diam. (mm) 38 mm	Coupler size (inch/mm) 11/2" (DN38)	Seal coupling side NBR	Weight 0.62 kg	Stock 58	Price per pcs £ 10.61	Amount
Art. no. 4620226	IMPA code 352019	General material Brass	Working pressure (BAR) 18	Hosetail diam. (mm) 50 mm	Coupler size (inch/mm) 2" (DN50)	Seal coupling side NBR	Weight 0.77 kg	Stock 20	Price per pcs £ 19.73	Amount
Art. no. 4620243	IMPA code 352020	General material Brass	Working pressure (BAR) 18	Hosetail diam. (mm) 63 mm	Coupler size (inch/mm) 21/2" (DN63)	Seal coupling side NBR	Weight 1.07 kg	Stock 15	Price per pcs £ 30.95	Amount
Art. no. 4620244	IMPA code 352021	General material Brass	Working pressure (BAR) 9	Hosetail diam. (mm) 75 mm	Coupler size (inch/mm) 3" (DN75)	Seal coupling side NBR	Weight 1.58 kg	Stock 13	Price per pcs £ 31.08	Amount
Art. no. 4620245	IMPA code 352022	General material Brass	Working pressure (BAR) 7	Hosetail diam. (mm) 100 mm	Coupler size (inch/mm) 4" (DN100)	Seal coupling side NBR	Weight 4.13 kg	Stock 13	Price per pcs £ 44.24	Amount
Art. no. 4620246	IMPA code 352023	General material Brass	Working pressure (BAR) 5	Hosetail diam. (mm) 125 mm	Coupler size (inch/mm) 5" (DN125)	Seal coupling side NBR	Weight 3.32 kg	Stock 0	Price per pcs £ 73.62	Amount

Inventory status

IN STOCK (delivery 1-3 workdays)

No stock (delivery time on request)

Description

Camlock Type C brass couplings are popular components in various sectors due to their versatility and ease of use.
These couplings, also known as cam and groove couplings, are often used for quickly and safely connecting hoses and pipes.

The brass construction of Camlock Type C couplings provides a durable and robust solution.
This makes them particularly suitable for applications where strength and reliability are important, such as in the water and wastewater industries.
The Type C coupling features a female camlock adapter on one side and a hose tail on the other.

A key advantage of brass Camlock Type C couplings is their ease of use.
They can be quickly and easily connected and disconnected by moving the cam handles up or down.
This makes them ideal for situations where quick connections are required.
Additionally, the brass material offers an excellent balance between strength and durability, contributing to ease of use.

Camlock Type C brass couplings are a reliable and efficient solution for connecting hoses and pipes in various industries.
Their robustness, durability, and easy installation make them a popular choice for applications in the water and wastewater industries.
With the different available sizes, these couplings can meet diverse needs, making them a versatile option for many applications.
