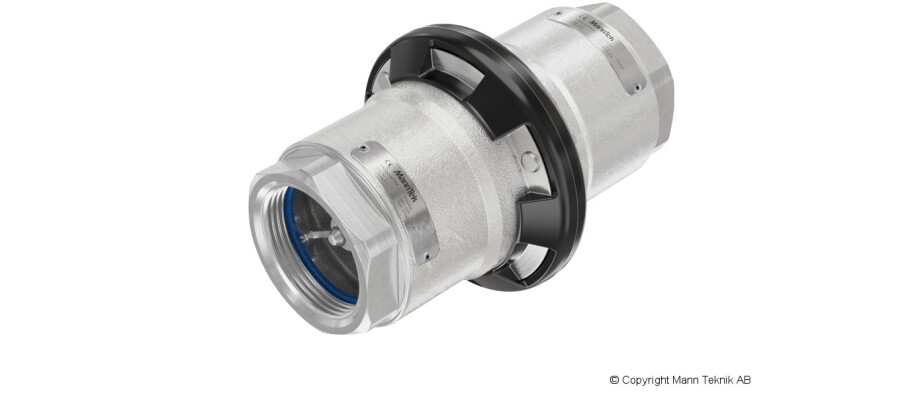

Manntek safety break away coupling aluminium 4" bsp marine

Art. no.

4624687

General material

Aluminium

Material seal thread side

Material seal coupling side

Viton (FPM)

Thread type

BSP Female thread

Coupling type

Coupling with female thread

Stock

Description

Safety Breakaway Couplings are used to prevent pull away accidents, protect terminal and loading/unloading equipment and eliminated unwanted product release. The breakaway couplings have a predefined breaking point which will break at a determined break-load where upon the internal valves will automatically close flow on both sides.

Safety Breakaway Couplings (Emergency Release Couplings) with integrated shut-off valves are used to avoid spillage and damage associated with drive and/or pull away incidents when loading and unloading. The couplings are designed to be the weakest link of the hose line or loading arm.
This will in a longer time frame minimize down time, save the environment, equipment and the investment.
Safety Breakaway Couplings are suitable for a wide range of products including petroleum-based products, chemicals, gases and foodstuffs.
Available in breaking pin version (marine type and industrial type) and cable release version.

Manntek safety break away coupling aluminium 4" bsp marine
