Coupling type
Coupling with female thread
Thread type
BSP Female thread
Material seal coupling side
Viton (FPM)
Material seal thread side
PTFE
General material
Stainless steel
£ 2756.55
Excl. VAT per pcs
Art. no. | General material | Thread connection | Working pressure (bar) | Coupler size (inch/mm) | Art.nr. supplier | Breakload | Weight | Stock | Price per pcs | Amount |
---|---|---|---|---|---|---|---|---|---|---|
Art. no. 4624686 | General material Stainless steel | Thread connection 3" (DN75) | Working pressure (bar) 25 | Coupler size (inch/mm) 3" (DN80) | Art.nr. supplier N414M4401A | Breakload 33 kN | Weight 7.919 kg | Stock 0 | Price per pcs £ 2756.55 | Amount |
Inventory status | IN STOCK (delivery 1-3 workdays) | No stock (delivery time on request) |
Description

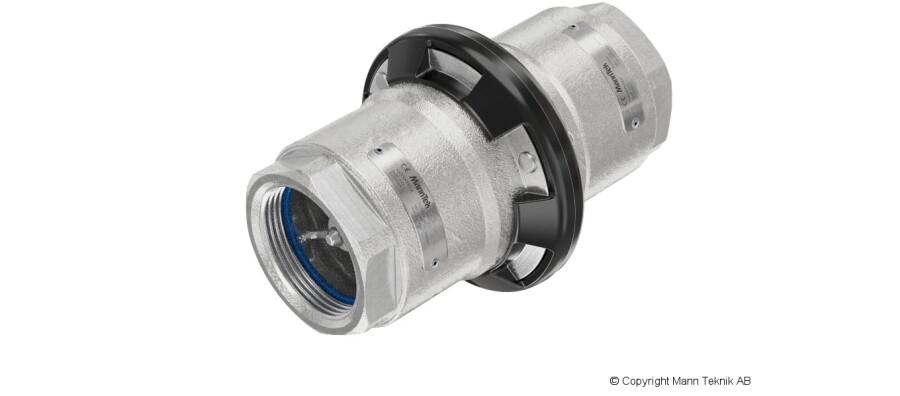

Safety Breakaway Couplings are used to prevent pull away accidents, protect terminal and loading/unloading equipment and eliminated unwanted product release. The breakaway couplings have a predefined breaking point which will break at a determined break-load where upon the internal valves will automatically close flow on both sides.Safety Breakaway Couplings (Emergency Release Couplings) with integrated shut-off valves are used to avoid spillage and damage associated with drive and/or pull away incidents when loading and unloading. The couplings are designed to be the weakest link of the hose line or loading arm.
This will in a longer time frame minimize down time, save the environment, equipment and the investment.
Safety Breakaway Couplings are suitable for a wide range of products including petroleum-based products, chemicals, gases and foodstuffs.
Available in breaking pin version (marine type and industrial type) and cable release version.
