Camlock hosetail female aluminium type C 1/2 16 bar

Art. no.

4620021

Coupling type

Coupling with hose tail

Material seal coupling side

NBR

General material

Aluminium

Suitable for mounting type

Hose clamp & Band-it assembly

Coupling side type

Female

Weight

0.089 kg

Stock

Art. no.	General material	Working pressure (bar)	Hose tail diameter (mm)	Coupler size (inch/mm)	Weight	Stock	Price per pcs	Amount
Art. no. 4620021	General material Aluminium	Working pressure (bar) 16	Hose tail diameter (mm) 13 mm	Coupler size (inch/mm) 1/2" (DN13)	Weight 0.089 kg	Stock 7	Price per pcs £ 2.89	Amount
Art. no. 4620022	General material Aluminium	Working pressure (bar) 16	Hose tail diameter (mm) 19 mm	Coupler size (inch/mm) 3/4" (DN19)	Weight 0.126 kg	Stock 109	Price per pcs £ 3.78	Amount
Art. no. 4620023	General material Aluminium	Working pressure (bar) 18	Hose tail diameter (mm) 25 mm	Coupler size (inch/mm) 1" (DN25)	Weight 0.154 kg	Stock 191	Price per pcs £ 3.80	Amount
Art. no. 4620025	General material Aluminium	Working pressure (bar) 18	Hose tail diameter (mm) 32 mm	Coupler size (inch/mm) 11/4" (DN32)	Weight 0.18 kg	Stock 307	Price per pcs £ 5.80	Amount
Art. no. 4620024	General material Aluminium	Working pressure (bar) 18	Hose tail diameter (mm) 38 mm	Coupler size (inch/mm) 11/2" (DN38)	Weight 0.308 kg	Stock 37	Price per pcs £ 6.54	Amount
Art. no. 4620026	General material Aluminium	Working pressure (bar) 18	Hose tail diameter (mm) 50 mm	Coupler size (inch/mm) 2" (DN50)	Weight 0.38 kg	Stock 276	Price per pcs £ 8.10	Amount
Art. no. 4620027	General material Aluminium	Working pressure (bar) 18	Hose tail diameter (mm) 63 mm	Coupler size (inch/mm) 21/2" (DN63)	Weight 0.46 kg	Stock 157	Price per pcs £ 9.20	Amount
Art. no. 4620028	General material Aluminium	Working pressure (bar) 9	Hose tail diameter (mm) 75 mm	Coupler size (inch/mm) 3" (DN75)	Weight 0.69 kg	Stock 45	Price per pcs £ 13.25	Amount
Art. no. 4620029	General material Aluminium	Working pressure (bar) 7	Hose tail diameter (mm) 100 mm	Coupler size (inch/mm) 4" (DN100)	Weight 1.08 kg	Stock 41	Price per pcs £ 17.30	Amount
Art. no. 4620030	General material Aluminium	Working pressure (bar) 5	Hose tail diameter (mm) 125 mm	Coupler size (inch/mm) 5" (DN125)	Weight 1.316 kg	Stock 30	Price per pcs £ 25.40	Amount
Art. no. 4620031	General material Aluminium	Working pressure (bar) 5	Hose tail diameter (mm) 150 mm	Coupler size (inch/mm) 6" (DN150)	Weight 2.75 kg	Stock 50	Price per pcs £ 37.87	Amount

Inventory status

IN STOCK (delivery 1-3 workdays)

No stock (delivery time on request)

Description

Camlock Type C aluminium couplings are popular components in various sectors due to their versatility and ease of use.
These couplings, also known as cam and groove couplings, are often used for quickly and safely connecting hoses and pipes.

The aluminium construction of Camlock Type C couplings provides a lightweight and durable solution. This makes them particularly suitable for applications where weight is an important factor, such as in the water and wastewater industries.

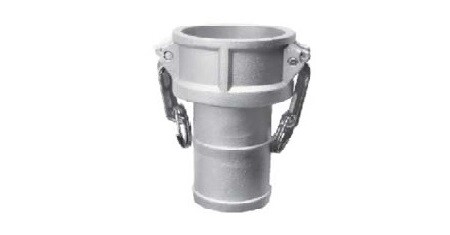

The Type C coupling features a female camlock adapter on one side and a hose tail on the other.

A key advantage of aluminium Camlock Type C couplings is their ease of use. They can be quickly and easily connected and disconnected by moving the cam handles up or down.
This makes them ideal for situations where quick connections are required. Additionally, the aluminium material offers an excellent balance between strength and weight, contributing to ease of use.

Camlock Type C aluminium couplings are a reliable and efficient solution for connecting hoses and pipes in various industries.
Their lightweight, durability, and easy installation make them a popular choice for applications in the water and wastewater industries.
With the different available sizes, these couplings can meet diverse needs, making them a versatile option for many applications.
